Product 2843/2863
WEINTEK HMI 7" COLOR TFT MT8071IE ETHERNET (COMPATIBLE WITH ALLEN BRADLEY PLC'S)
quality warranty !
Ship to worldwide by DHL/Fedex
Weintek HMI 7" color TFT MT8071iE (compatible with Allen Bradley Automation PLC's) See below for a full list of compatible PLC's
We have been looking for a HMI that is quality built, fully compatible with all major PLC brands and all for a great price... not easy but we have found them, these are the newest Weintek line of Ethernet HMI's
Free programming software included
Features
Display ~ 7” TFT Resolution 800 x 480 Brightness (cd/m2 ) 300 Contrast Ratio 500:1 Backlight Type LED Backlight Life Time >30,000 hrs. Colors 262K
Memory ~ Flash 128 MB RAM 128 MB

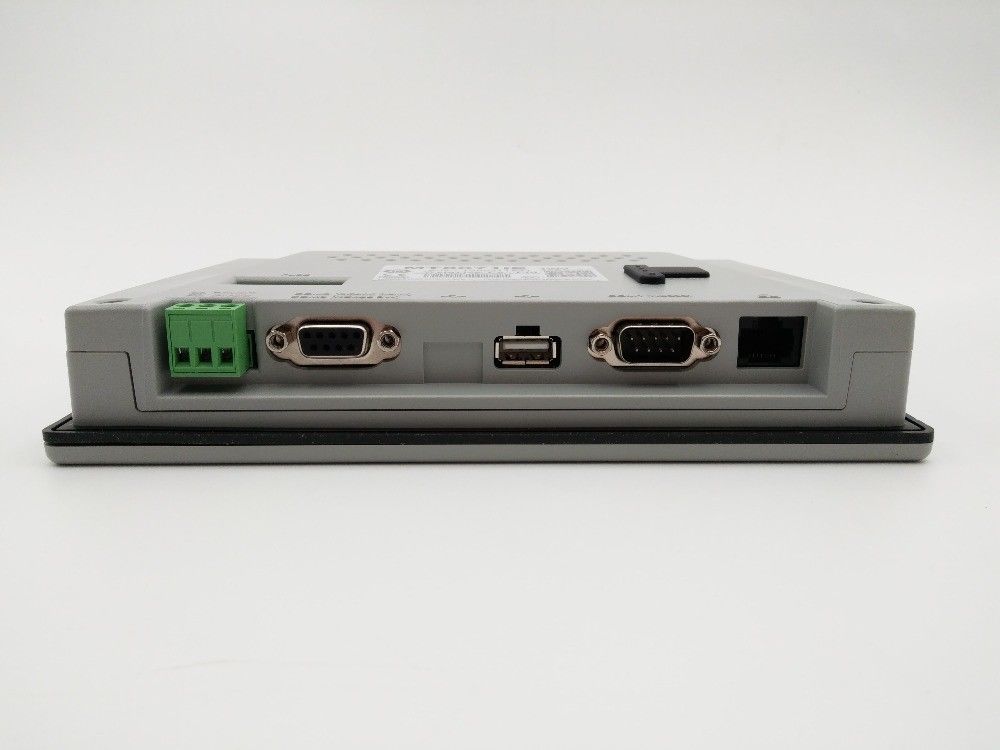

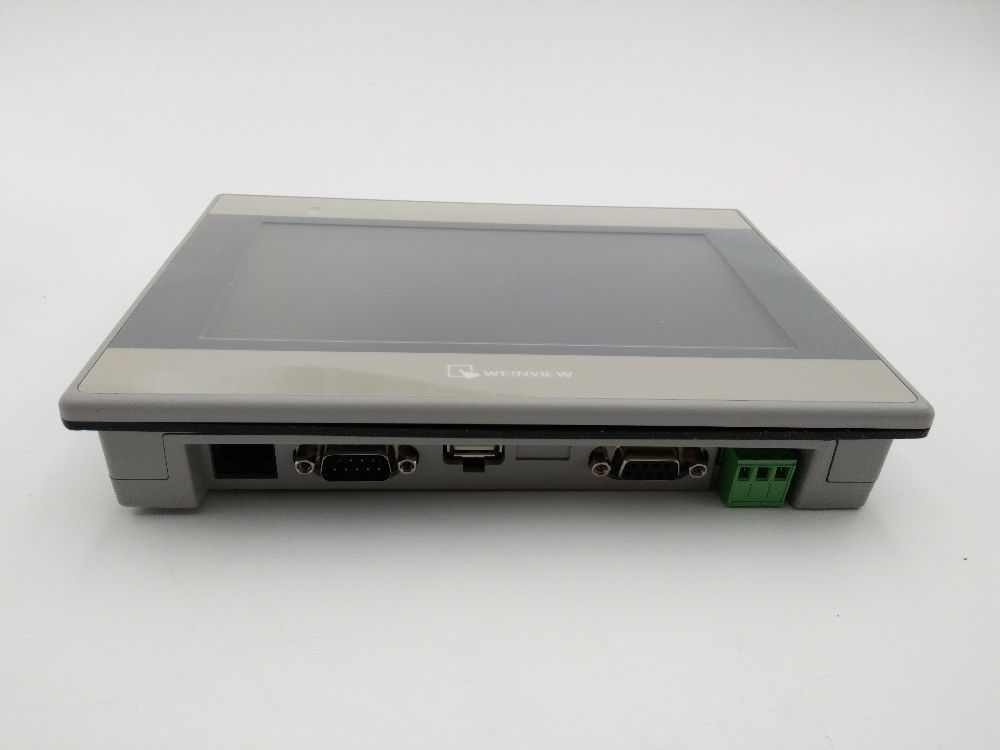

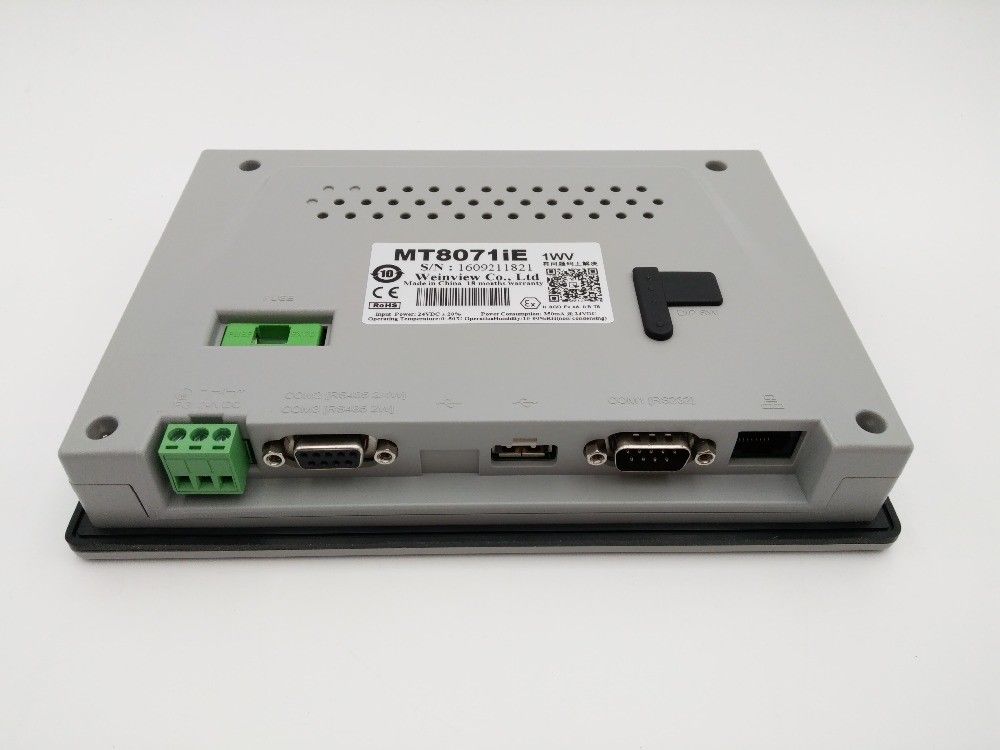

I/O Port ~ USB Host USB 2.0 x 1 USB Client N/A Ethernet 10/100 Base-T x 1 COM Port COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W

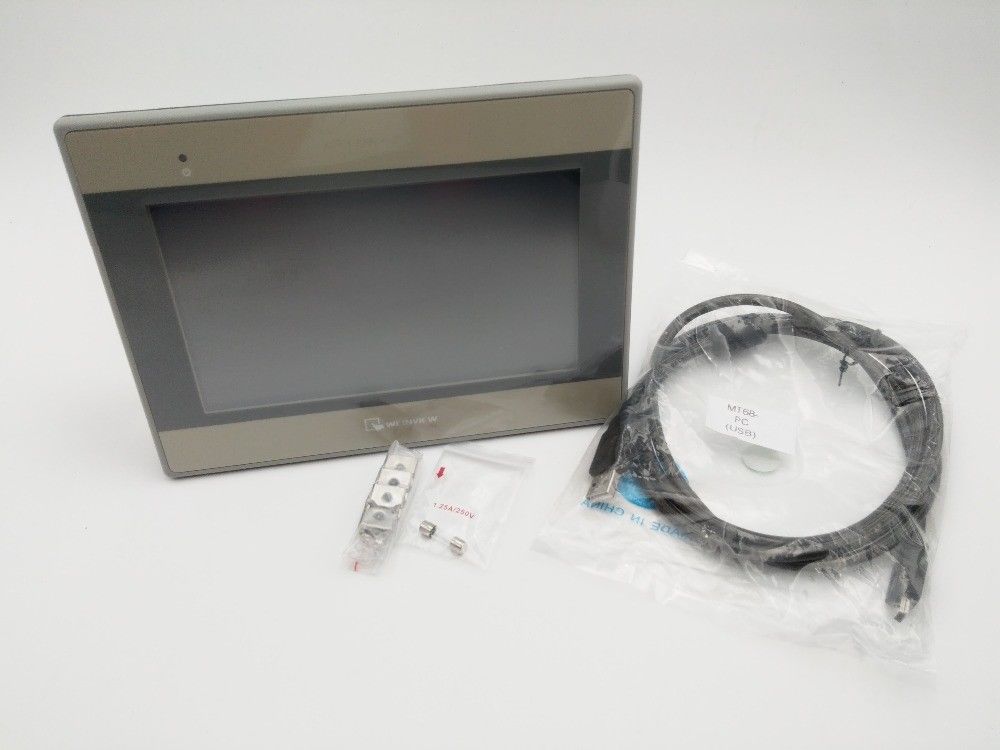

1. package included:

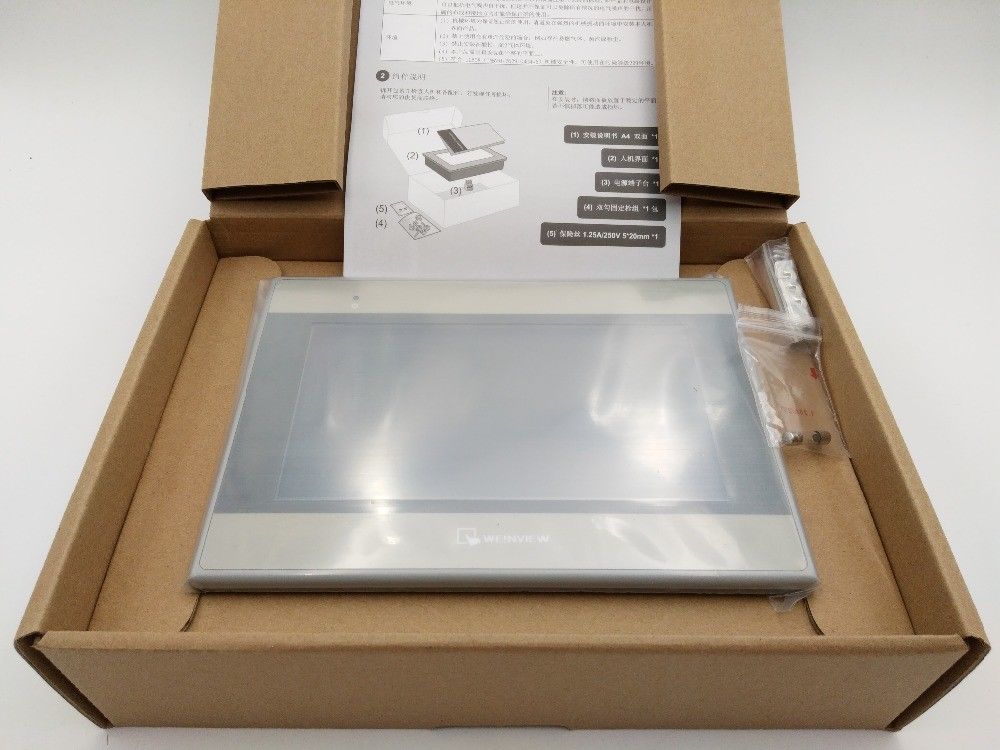

MT8071iE human machine interface HMI touch screen new in box;
cable.
The software is free(we can send it by email if you can’t download it by yourself)
2. Performance specification
display
Display type
7”TFT
resolution
800 x 480
lightness (cd/m2)
350
contrast
500:1
backlight
LED
Backlight life
30,000 hours
color
24bits
Touch panel
Four-wire analog resistance type
memory
Flash (MB)
128
DRAM (MB)
processor
32Bit RISC Cortex-A8 600MHz
communication
SD
N/A
USB Host
USB 2.0 x 1
USB Client
Ethernet
10/100 Base-T
COM
Com1: RS-232,COM2:RS-485 2w/4w,Com3:RS-485 2w
Calendar
Built in
power
input
24±20%VDC
250mA 24V
Isolated power
Pressure-proof
500VAC (1 munite)
Insulating resistance
50MW at 500VDC
Quake-proof
10 to 25Hz(X,Y,Z 2G 30munites)
Specifications
Sheathing material
ABS
Outside measurement
200.4 x 146.5 x 34mm
Opening size(mm)
192 x 138 mm
Weight(kg)
0.6 kg
Operating Environment
Protection level
NEMA4/IP65
Storage Temperature
-20 to 60°C (-4°to 140°F)
Operating Temperature
0°to 50°C(32°to 122°F)
Operating Humidity
10% to 90% 40°C
CE Certification
CE
CE marked
Software
EasyBuilder Pro V3.00.01 or latest version
