1,package included:

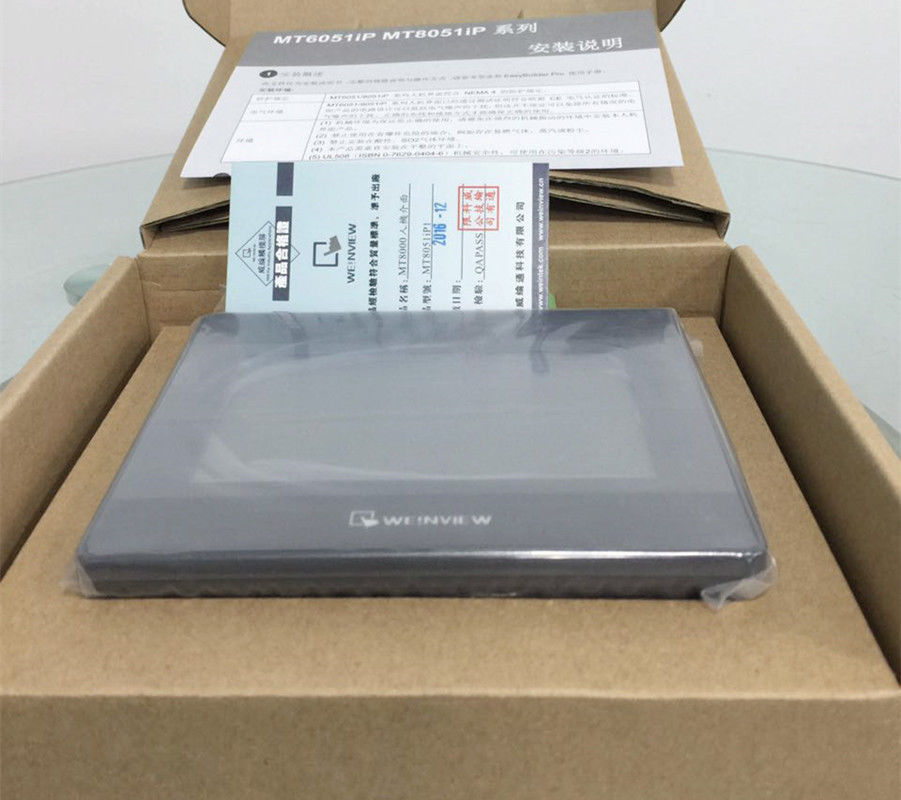

MT8051iP human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, WeinviewMT8051iP HMI
The new choice gives you adifferent user experience.
The two big upgrade! Exquisiteman-machine interface MT (iP) series of comprehensive upgrade to meet the needsof a variety of different applications and users.
Equipped with upgraded Cortex A8600 MHz CPU processor.
Seamless upgrade from EB8000 toEasyBuilder Pro
3, Performance specification
| display | Display type | 4.3”TFT |
| resolution | 480*272 |
| lightness (cd/m2) | 400 |
| contrast | 500:1 |
| backlight | LED |
| Backlight life | 30,000 hours |
| color | 16.7M |
| Touch panel | | Four-wire analog resistance type |
| memory | Flash (MB) | 128 |
| DRAM (MB) | 128 |
| processor | | 32Bit RISC 600MHz |
| communication | SD | N/A |
| USB Host | USB 2.0 x1 |
| USB Client | N/A |
| Ethernet | 10/100 base –T |
| COM | Com1:RS-232/RS-485 2w/4w |
| Calendar | | Built in |
| power | input | 24±20%VDC |
| power | 400mA 24V |
| Isolated power | Built in |
| Pressure-proof | 500VAC (1 munite) |
| Insulating resistance | 50MW at 500VDC |
| Quake-proof | 10 to 25Hz(X,Y,Z 2G 30munites) |
| Specifications | Sheathing material | ABS |
| Outside measurement | 128 x 102 x 38mm |
| Opening size(mm) | 119 x 93 |
| Weight(kg) | 0.25 kg |
| Operating Environment | Protection level | NEMA4/IP65 |
| Storage Temperature | -20 to 60°C (-4°to 140°F) |
| Operating Temperature | 0°to 50°C(32°to 122°F) |
| Operating Humidity | 10% to 90% 40°C |
| CE Certification | CE | CE marked |
| Software | | Easy Builder Pro |
