1, package included:

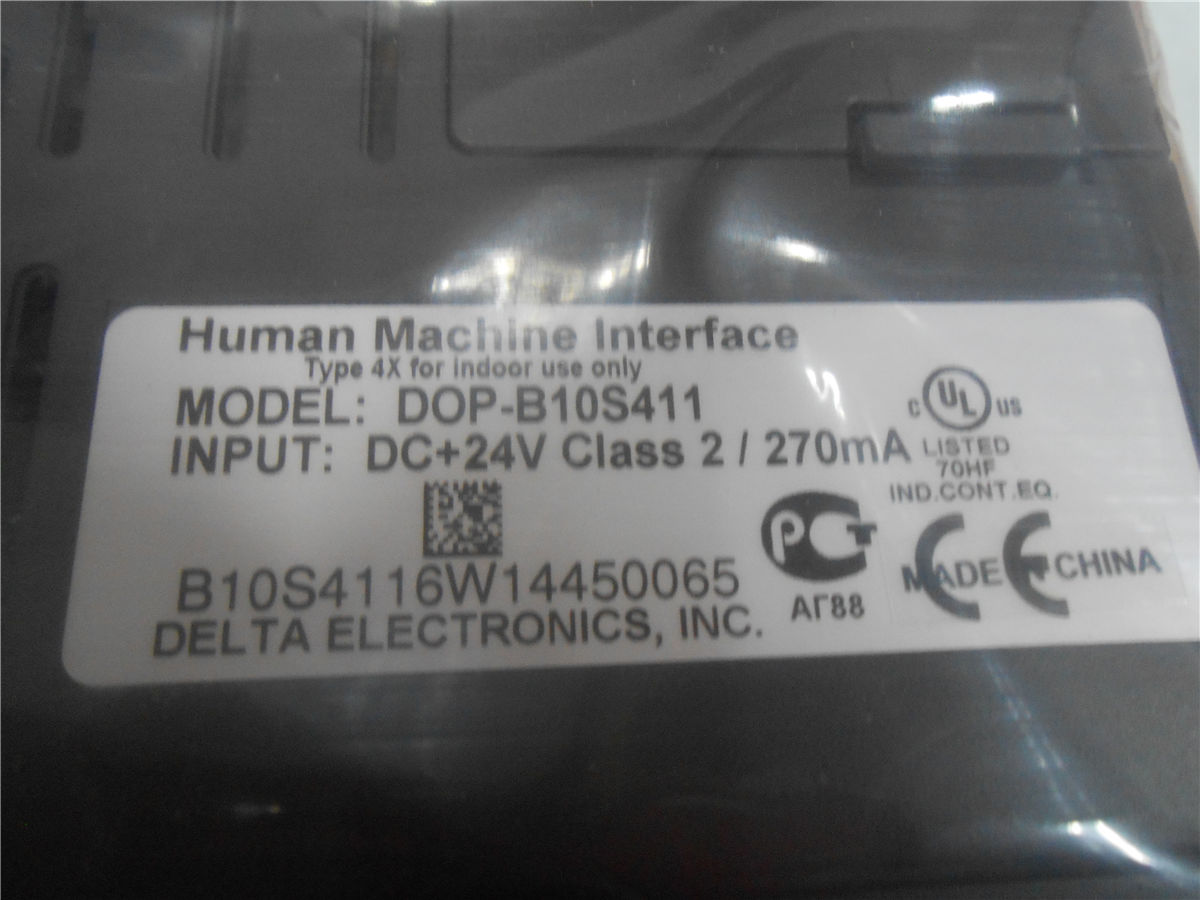

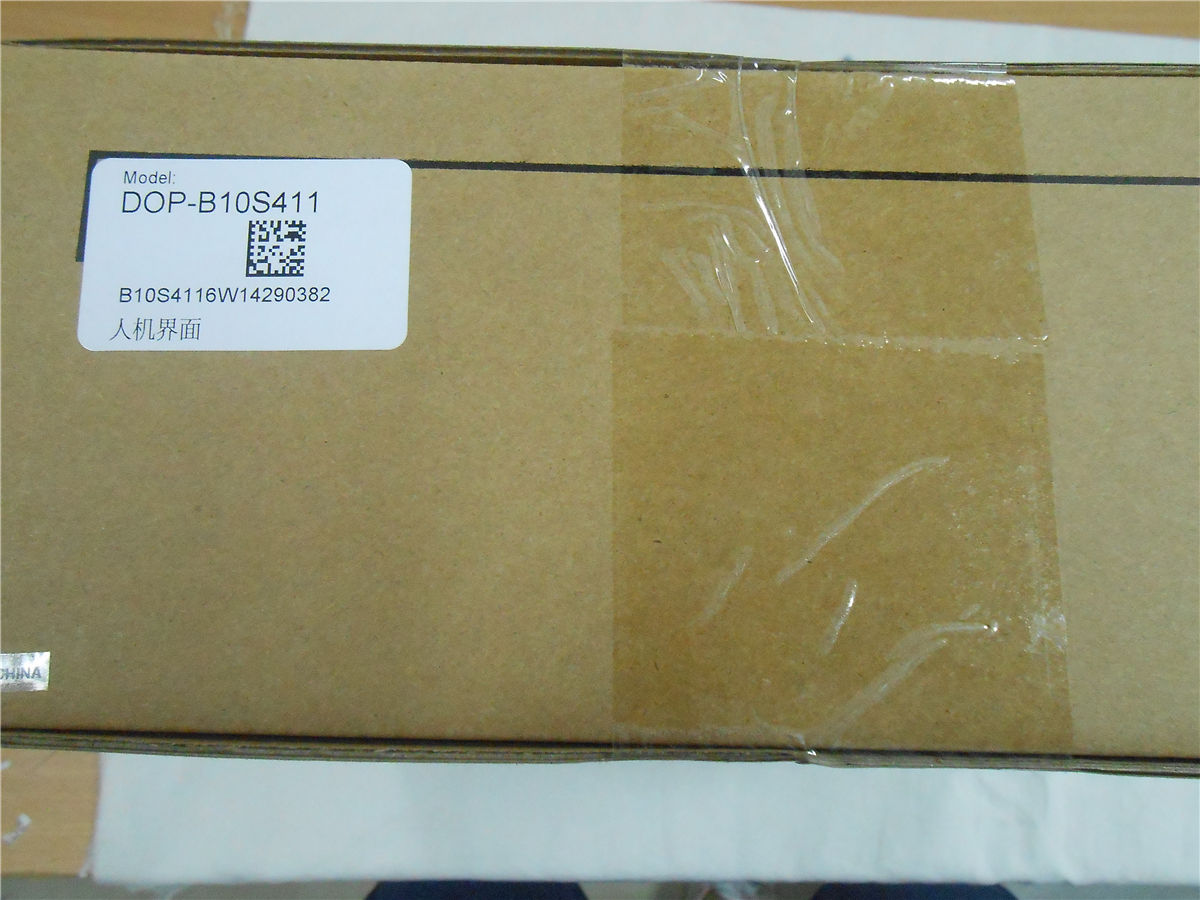

DOP-B10S411 human machine interface HMI touchscreen new in box;
programming cable(Onlyoffer it free when you ask for after order. Not ship it default. The communicationcable is not included, if you need, please contact us and inquiry it)
The software is free(we cansend it by email if you can’t download it by yourself)
2, Performance specification
MODEL
DOP-B10S411
LCD MODULE
Display Type
10.1" Widescreen TFT LCD
(65536 colors )
Resolution
800 x 480 pixels
Back Light
LED Back Light (less than 10,000 hours half-life at 25°C) (Note 1)
Display Size
219.6 x 131.76mm
Operation System
Delta Real Time OS
MCU
32-bit RISC Micro-controller
NOR Flash ROM
Flash ROM 128 MB(OS System: 30MB / Backup: 16MB / User Application: 82MB)
SDRAM
64Mbytes
Backup Memory
16Mbytes
Sound Effect Output
Buzzer
Multi-Tone Frenquency (2K~4K Hz) / 85dB
AUX
N/A
Ethernet Interface
Memory Card
USB
1 USB Host Ver 1.1 / 1 USB Client Ver 2.0
Serial COM
Port
COM1
RS-232 (supports hardware flow control)
COM2
RS-232/ RS-485(has built-in isolated power circuit ( N o t e 3 ) )
COM3
RS-232 / RS-422 / RS-485(has built-in isolated power circuit )
Function Key
Perpetual
Calendar (RTC)
Built-in
Cooling Method
Natural air circulation
Safety Approval
CE / UL / KCC (Note 4) (Note 4)
Waterproof Degree
IP65 / NEMA4
Operation Voltage (Note 5)
DC +24V (-10% ~ +15%)
(has built-in isolated power circuit )
Voltage Endurance
AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)
Power Consumption
(Note 5)
6.6W
Backup Battery
3V lithium battery CR2032 x 1
Backup Battery Life
It depends on the temperature used and the conditions of usage, about 3 years or more at 25°C.
Operation Temp.
0°C ~ 50°C
Storage Temp.
-20°C ~ +60°C
Dimensions(W) x (H) x (D)mm
272 x 200 x 61
Panel Cutout(W) x (H)mm
261.3 x 189.3
Weight
Approx.1520g
