Product 789/2863

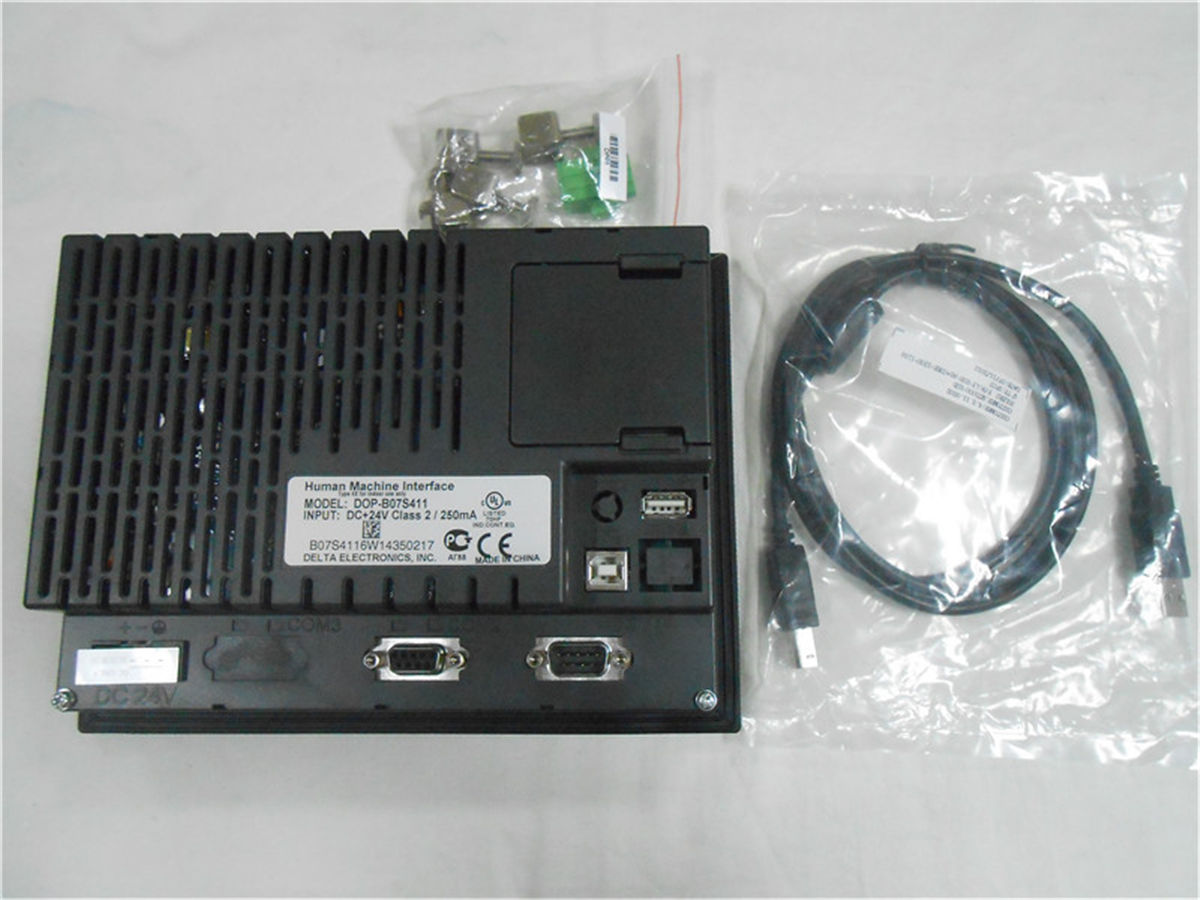

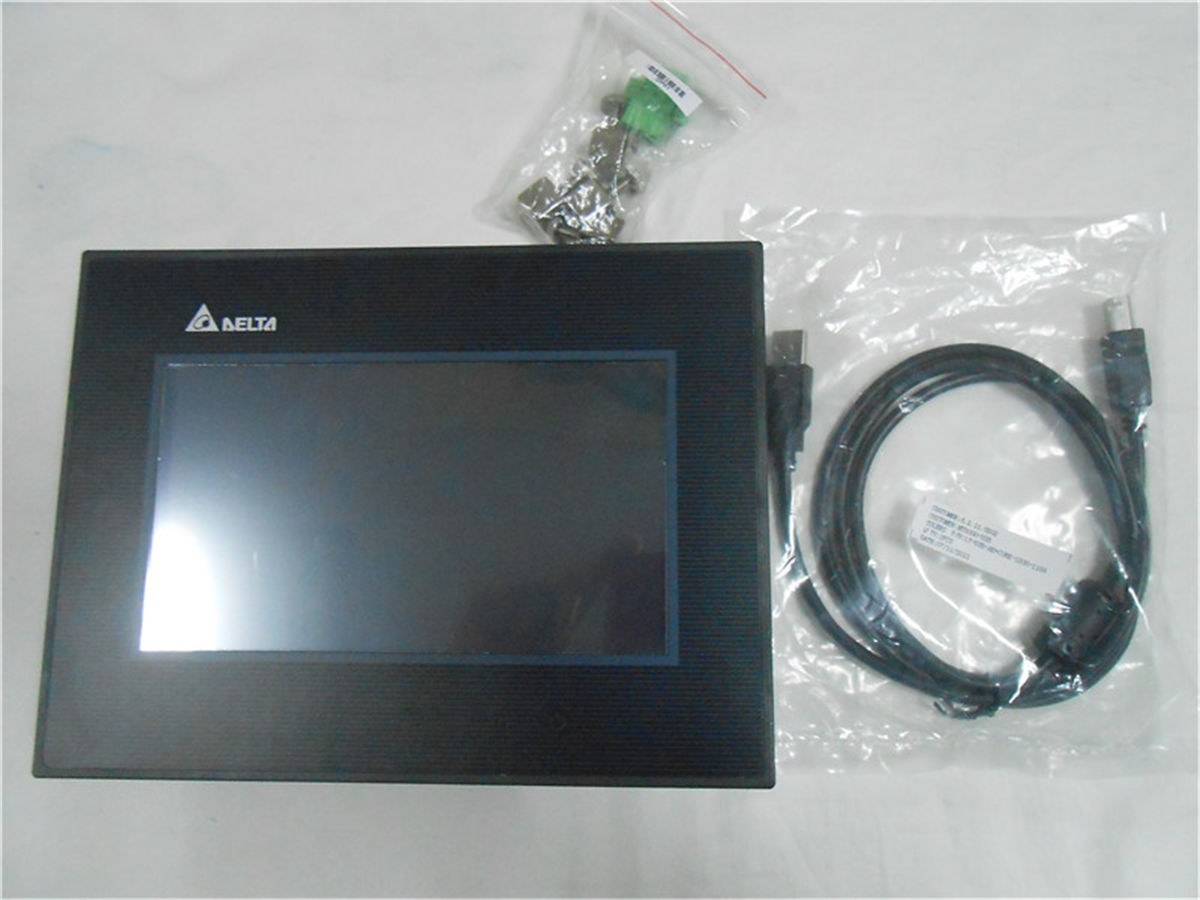

1,package included:
DOP-B07S411 human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, Performance specification
MODEL
DOP-B07S411
DOP-B07S411K
Display Type
7" TFT LCD (65535 colors)
Resolution
800 x 480 pixels
Backlight
LED Back Light (less than 20,000 hours half-life at 25 o C)
Display Size
154.08 x 85.92mm
154.1 x 87.6mm
Operation System
Delta Real Time OS
MCU
32-bit RISC Micro-controller
NOR Flash ROM
Flash ROM 128 MB
(OS System: 30MB / Backup: 16MB / User Application: 82MB)
SDRAM
64Mbytes
Backup Memory
32Kbytes
Buzzer
Multi-Tone Frequency（2K ~ 4K Hz）／85dB
USB
1 USB Slave Ver 2.0 1 USB Host Ver 1.1
COM1
RS-232(supports hardware flow control)
COM2
RS-232 / RS-485
COM3
RS-422 / RS-485
Function Key
N/A
User defined key x 4 + System key x 4
Perpetual Calendar (RTC)
Built-in
Cooling Method
Natural air circulation
Safety Approval
CE
Waterproof Degree
IP65
Operation Voltage
DC +24V（-10% ~ +15%）(please use isolated power supply)
Voltage Endurance
AC500V for 1 minute
Power Consumption
4.0W
Backup Battery
3V lithium battery CR2032 × 1
Dimensions
(W) x (H) x (D) mm
215 x 161 x 50
Panel Cutout (W) x (H) mm
196.9 x 142.9
Weight
820g
840g
Guarantee:1 year quality warranty.
